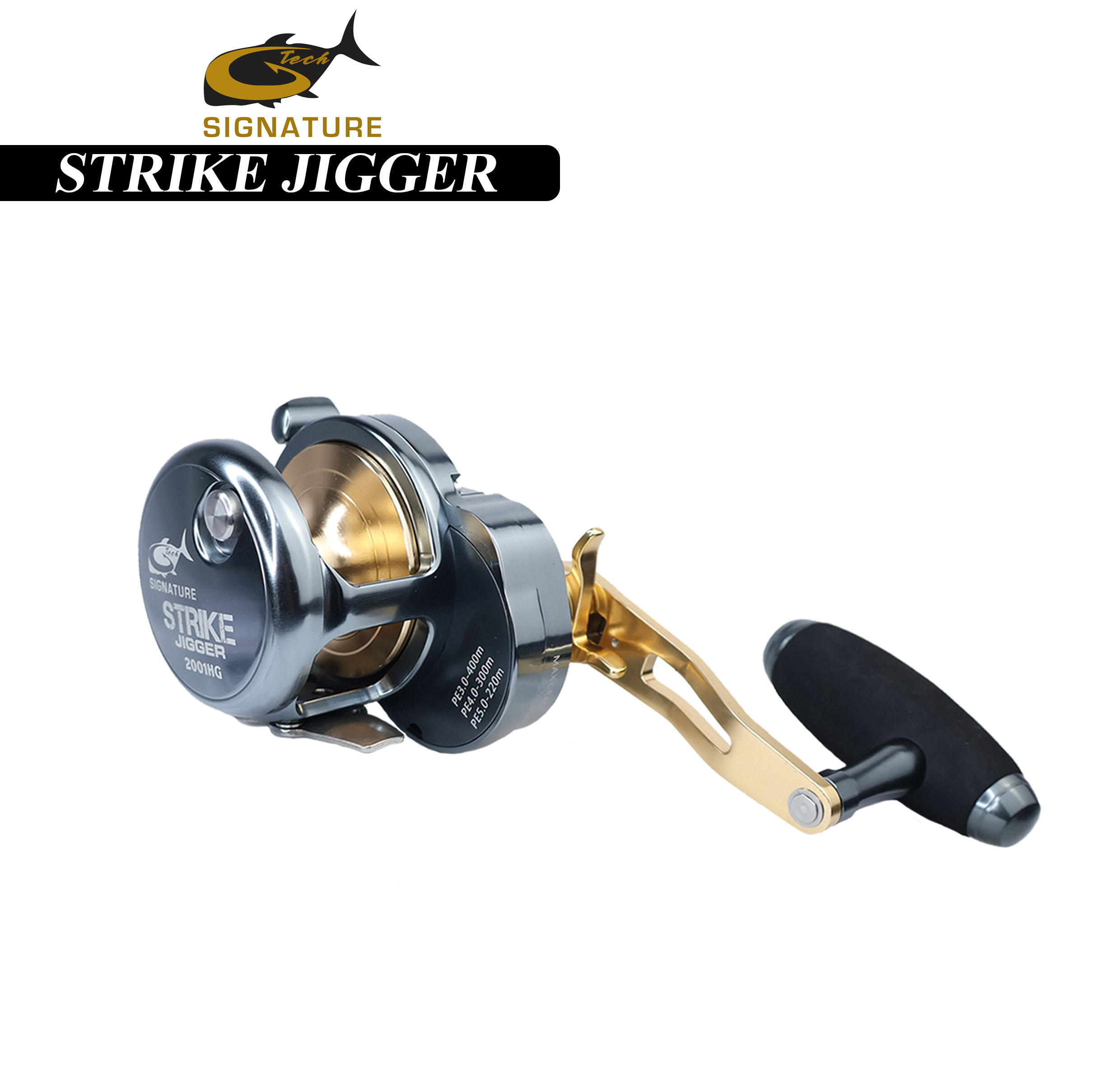

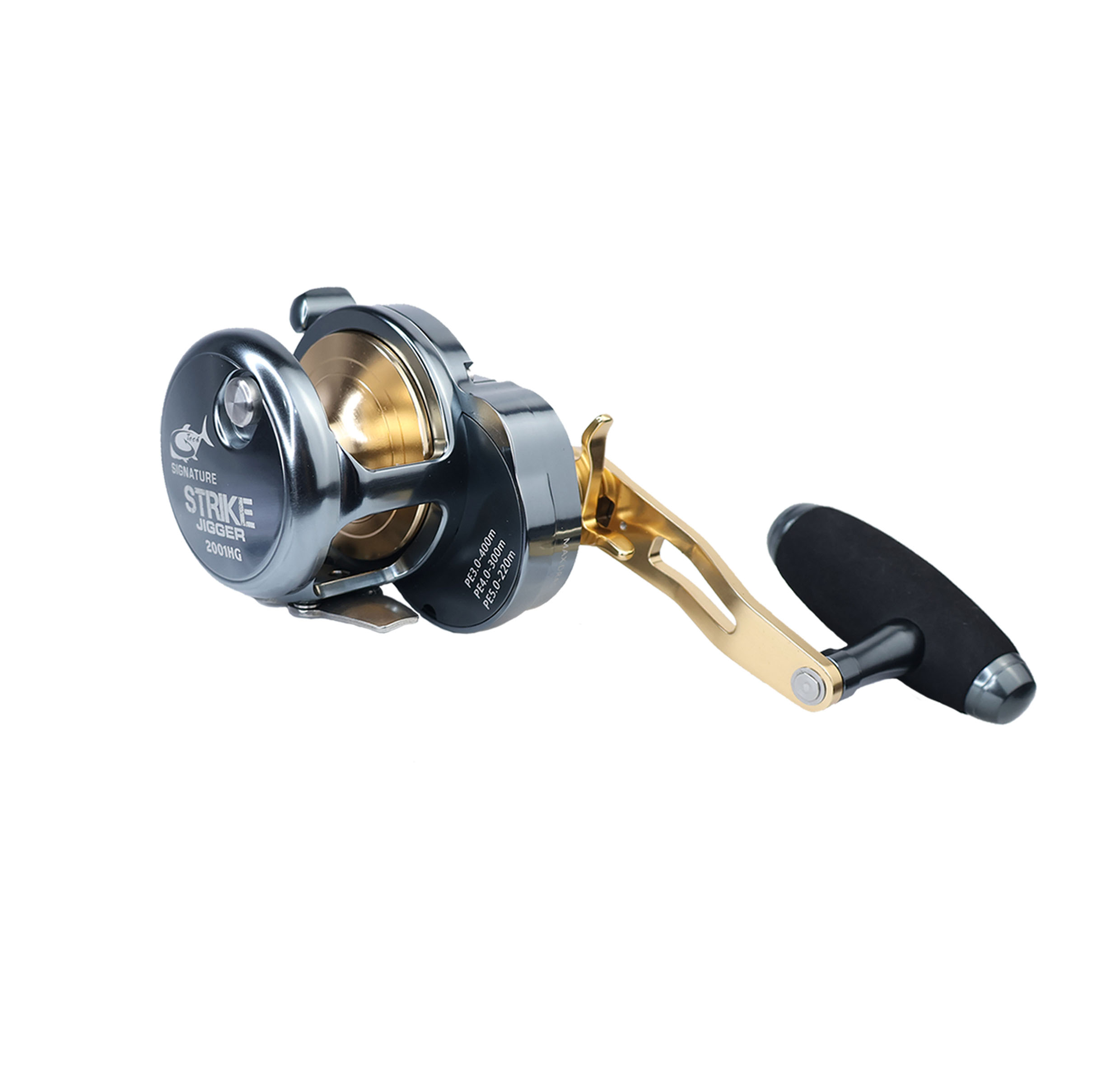

STRIKE JIGGER

FEATURE :
– Precision forged machined out one piece 6061-T6 ALUMINUM ALLOY
body And Body side plate
– Brass Drive gear and connecting gear.
-Stainless steel gear shaft
– 8+1 stainless steel ball bearing
– Carbon Cloth drag washer for more powerful drag system
– Star drag system, maximum drag up to 25kgs
-With SLOW DOWN STRIKE SYSTEM specially designed for slow and vertical jigging as well as bottom fishing
– Adjustable cold forged long crank handle 90/80mm.
– T-Shape EVA handle knob has been redesigned to be lighter and give a better grip
-Superb for deep sea fishing and targeting larger species.
– This reel is not limited to light jigging and jigging

ASK US ON WHATSAPP
SHOP ON OUR SHOPEE
VIEW SPAREPARTS
Brand

Size

1501HG, 2001HG

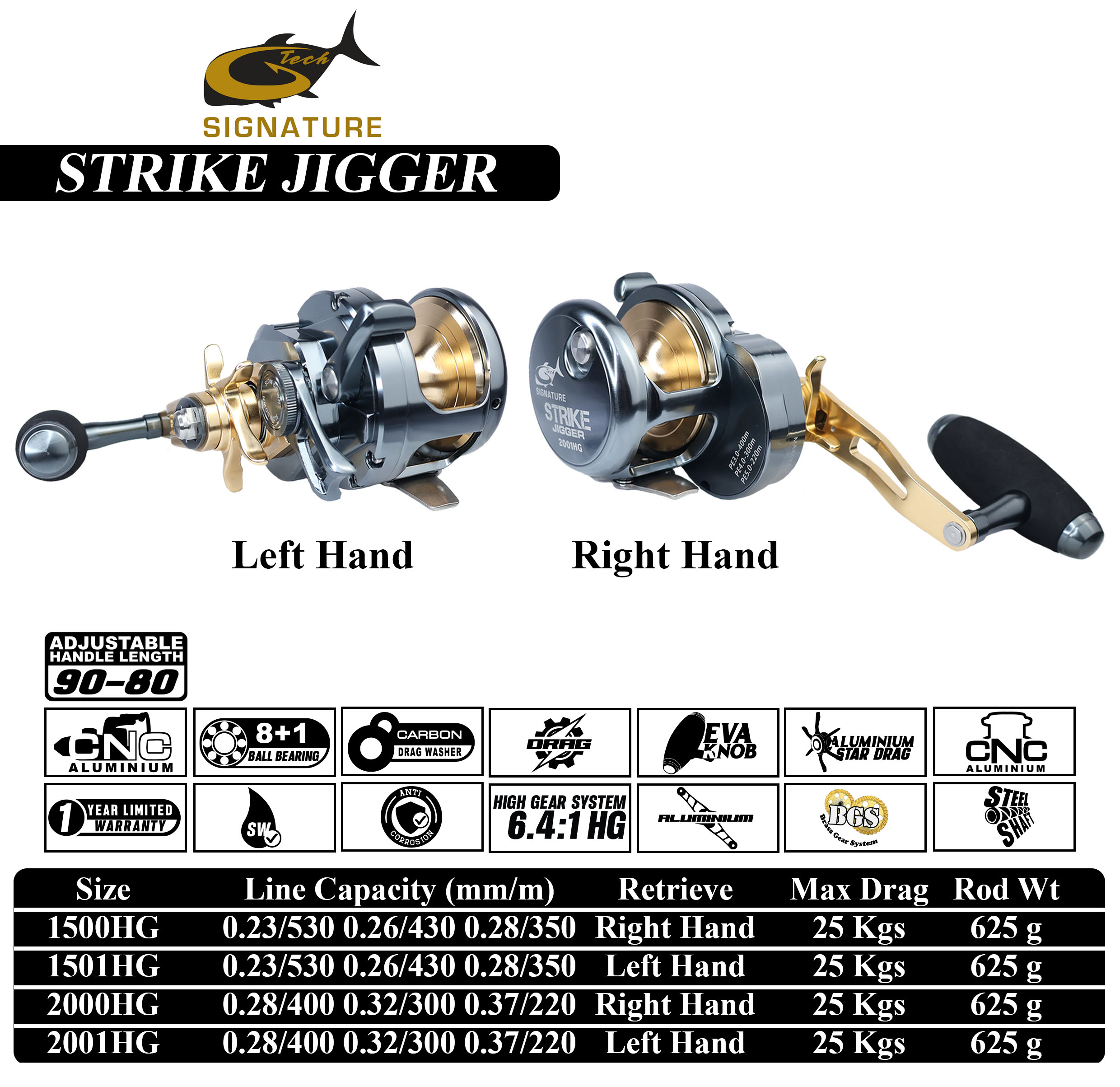

SizeCapacity (mm/m)RatioBall BearingMax Drag (kgs)SRP (RM)
1501HG0.23/530 0.26/430 0.28/3506.4:18+125828.00
2001HG0.28/400 0.32/300 0.37/2206.4:18+125864.00
No. ITEMS SRP (RM) No. ITEMS SRP (RM) No. ITEMS SRP (RM)
1 HANDLE ASSY.NUT 34 CLUTCH SWITCH CONNECTING ROD 67 CLUTCH SPRING
2 THE ROCKER CVER FIXED 35 CLUTCH SWITCH CONNECTING ROD SCREW 68 CLUTCH PIECE
3 HANDLE ASSY.NUT POSITIONING SCREW 36 CLUTCH CONNECTING PIECE 69 CLUTCH PICK
4 HANDLE ASSY 37 CLUTCH CONNECTING SPRING 70 BEARING
5 HALF BALL HANDLE KNOB 38 CLUTCH FIXING PLATE 71 SCREW
6 HANDLE ASSY POSITIONING SHEET 39 CLUTCH FIXED COLUMN 72 COVER
7 THE PENTAGON BUCKLE 40 CLUTCH FIXING PLATE SCREW 73 BODY COVER SCREW
8 TICK-TOCK SEAT 41 ONE WAY CLUTCH 74 COVER
9 DRIP CHIP WASHER 42 ONE WAY CLUTCH SLEEVE 75 COVER SLEEVE SCREW
10 THE PENTAGON WRENCH 43 BRAKE COVER PLATE 76 SPOOL BALL BEARING
11 SPRING 44 TOOTH DISC DRIP COVER PLATE 77 MAIN SHAFT ASSY
12 PIN 45 CARBON DRAG WASHER 78 WIRE WHEEL LATCH
13 BRAKE SPRING 46 BRAKE SQUARE WASHER 79 DRIPPER GEAR
14 BRAKE NUT 47 CARBON DRAG WASHER 80 DROP GEAR -TYPE E BUCKLE
15 THE BRAKE WASHER 48 BRAKE SQUARE WASHER 81 SPOOL
16 THE BRAKE WASHER 49 CARBON DRAG WASHER 82 CLICK – TYPE E CLASP
17 WASHER 50 DRIVE GEAR 83 DRIP SPRING
18 WASHER 51 TOOTH DISC DRIP PIN 84 LOUD BIRD
19 BEARING WASHER 52 GEAR DISC DRIP SPRING 85 GASKET
20 DRIVE GEAR SHAFT BALL BEARING 53 DRIP FIXING SLEEVE 86 LOUD CLAMP
21 DECORATIVE SHEET 54 CARBON DRAG WASHER 87 E-TYPE BUCKLE
22 SLOW LOWERING FIXED NUT 55 REACTION GEAR 88 WASHER
23 SLOW DROP WRENCH INSERT 56 DRIVE GEAR SHAFT 89 DRIP CONNECTING PIECE
24 SLOW DROP WRENCH 57 TOOTH DISC FIXING PLATE SCREW 90 COVER BEARING ROLLAR
25 SPINDLE NUT 58 DISC FIXER 91 MAIN FRAME BODY BALL BEARING
26 MAIN SHAFT BRAKE WASHER 59 GEAR DISC SHAFT RETAINING RING 92 MAIN SHAFT WASHER
27 COVER BEARING COLLAR 60 GEAR DIS SHAFT BEARING 93 GEAR COVER SCREW
28 COVER BEARING 61 SCREW 94 GEAR COVER
29 BEARING WASHER 62 REACTIONARY PIECE 95 MAIN FRAME BODY ASSY
30 SIDE PLATE 63 REACTIONARY PIECE COLUMN 96 FIGURE EIGHT RING
31 SIDE PLATE SCREW 64 GEAR ROD 97 CLICK HOLDER WASHER
32 CLUTCH WRENCH 65 TOOTH ROD COMPRESSION SPRING 98 CLICK HOLDER
33 CLUTCH WRENCH WASHER 66 TOOTH ROD FASTENING PIECE
